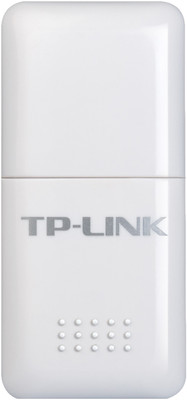

TP-LINK TL-WN723N 150Mbps Mini Wireless N USB Adapter

GENERAL

Antennae Internal
USB Connector USB 2.0
Encryption 64-bit/128-bit WEP, WPA-PSK, WPA2-PSK, TKIP, AES, Wireless MAC Filtering, QSS
Model 150Mbps Mini Wireless N USB Adapter TL-WN723N Part TL-WN723N
Leds Off, Flashing Slowly, Flashing Quickly
Supported Protocols IEEE 802.11b/g/n
Transmit Power 20 dBm
Frequency 2.4 - 2.4835 GHz
Maximum Wireless Transmission Rate 150 Mbps
Work Mode Ad-Hoc, Infrastructure
In The Box 150Mbps Mini Wireless N USB Wi-Fi Adaptor (White) and Quick Start Guide150Mbps Mini Wireless N
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
Receiver Sensitivity 130M: -68dBm@10% PER, 108M: -68dBm@10% PER, 54M: -68dBm@10% PER, 11M: -85dBm@8% PER, 6M: -88dBm@10% PER, 1M: -90dBm@8% PER
Color White
Brand TP-LINK

OPERATING CONDITIONS

Operating Humidity 10 % - 90 % non-condensing
Operating Temperature 0DegC - 40DegC
Storage Humidity 5 % - 90 % non-condensing
Storage Temperature -40DegC - 70DegC

SYSTEM REQUIREMENTS

Operating System Windows XP and Above

DIMENSIONS

Height 8.4 mm
Width 36.8 mm
Depth 17 mm

WARRANTY

Warranty Type Repair and Replacement
Warranty Summary Physical Damage and Burn Out Cases are not entitled for Warranty, Toll Free number 18002094168
Covered in Warranty Manufacturing Defects
Not Covered in Warranty Physical Damages
Warranty Service Type Carry In
Domestic Term 3 Years
